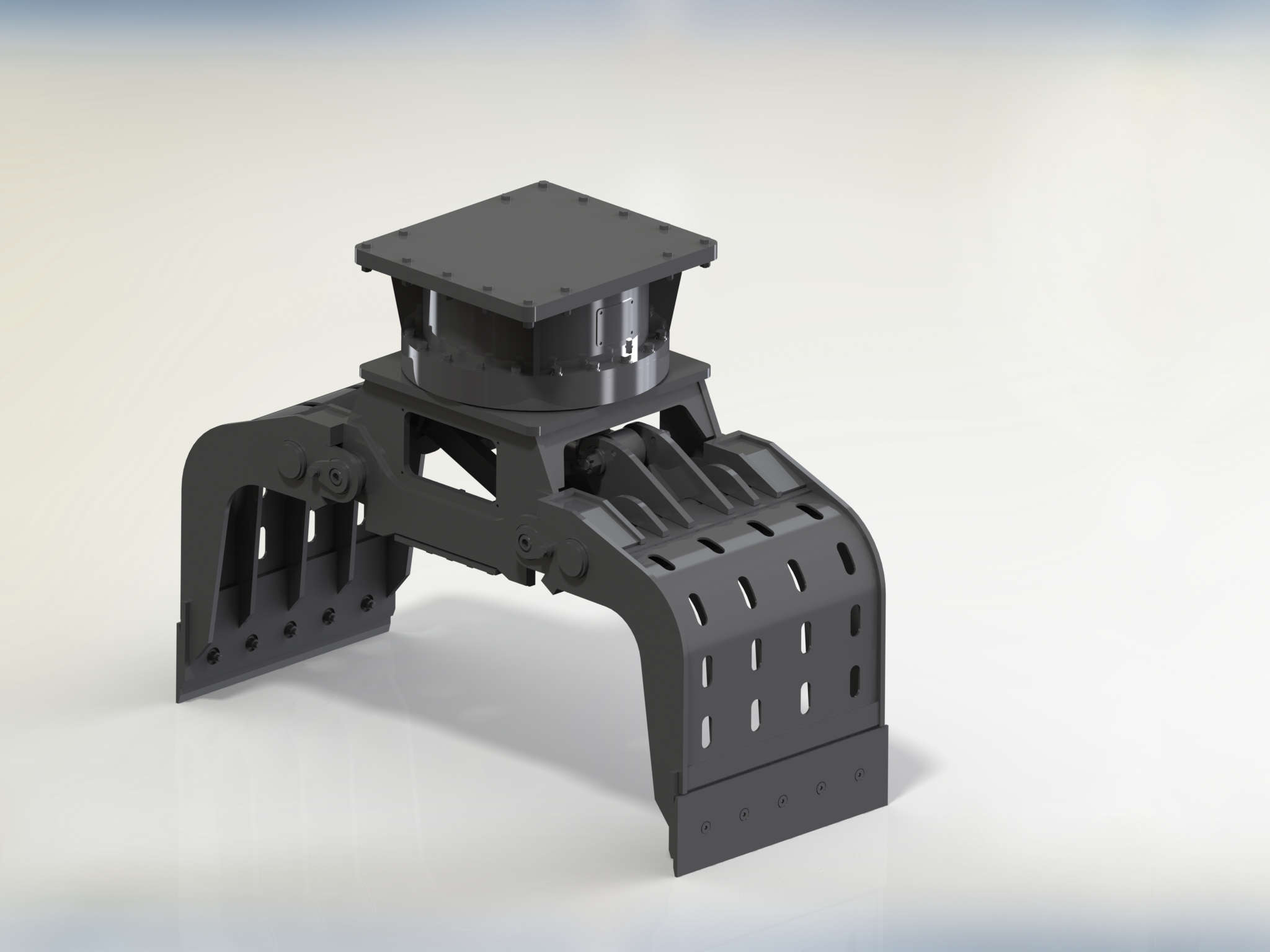

Hydraulic rotary grab
Features:
Hydraulic rotary grab is available in full 360˚ rotation.
Good quality cylinder to support more power for grabbing and handling.
Robust designed body and legs with wear resistant steel plate.
Installed with check valve and pressure relief valve is to avoid operation overload.
Hydraulic rotary grab is available in full 360˚ rotation.
Good quality cylinder to support more power for grabbing and handling.
Robust designed body and legs with wear resistant steel plate.
Installed with check valve and pressure relief valve is to avoid operation overload.
Applications：
- The Hydraulic rotary grab can be used in varieties of applications, handling disposable waste, brush, logs, construction debris, stones, wood, pipes, landscaping materials and more.
- Range from 2Ton to 20Ton excavators.
- It is efficiency if cooperate with skeletoon bucket or ripper.
| Model | Max. Open mm | Grab capacity KG | Max pressure MPA | Flow L/Min |
|---|---|---|---|---|
| RG02 | 1020 | 400 | 16 | 40-90 |
| RG05 | 1160 | 500 | 16 | 40-90 |
| RG08 | 1460 | 650 | 22 | 60-120 |
| RG12 | 1670 | 1150 | 22 | 60-120 |
| RG20 | 1880 | 1500 | 22 | 60-120 |
